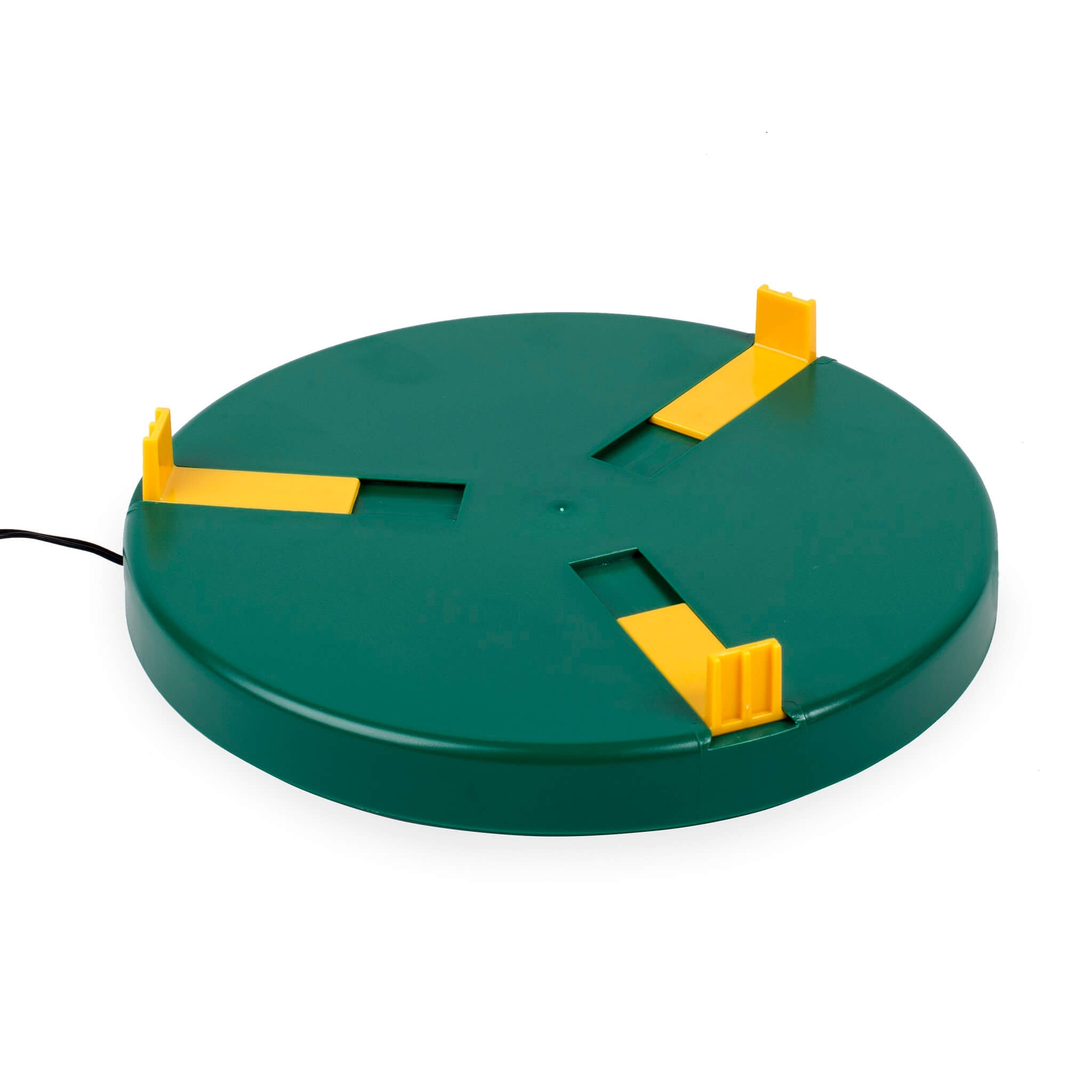

Practical poultry drinker heater with adjustable brackets to help prevent drinking water from freezing during cold weather. Available in diameters of 20, 25 or 30 cm, with heating outputs of 12, 20 or 30 watts. The adjustable brackets help keep the drinker securely positioned while the heating plate transfers warmth to the water from below.

This drinker heater helps provide chickens, quail and other poultry with accessible drinking water during the winter months. The electric heating plate is placed underneath a suitable drinker and transfers warmth through the drinker's base into the water.

A particularly useful feature is the three adjustable retaining brackets. They can be positioned to suit the drinker and help prevent it from slipping off the heating plate. This is especially helpful with taller or nearly empty drinkers, which may be less stable as their water level decreases.

Three Sizes for Different Poultry Drinkers

The drinker heater is available in three versions:

• 20 cm – 12 W: Compact version for smaller poultry and quail drinkers.

• 25 cm – 20 W: Medium-sized version for drinkers with a larger base.

• 30 cm – 30 W: Larger version for correspondingly bigger poultry drinkers and greater heating requirements.

The measurements refer to the diameter of the heating plate. Thanks to the adjustable brackets, suitable drinkers with a slightly larger base may also be positioned securely.

Choose the size according to the base diameter and capacity of your drinker. The drinker should rest as fully and securely as possible on the heating plate.

Adjustable Brackets for a Secure Fit

The yellow retaining brackets can be adjusted to the drinker in use. They limit sideways movement and help keep the drinker stable on the heater.

As the water level drops and the drinker becomes lighter, the brackets offer useful additional protection against accidental displacement.

Adjust the brackets so that the drinker remains secure but can still be removed easily for filling and cleaning.

Targeted Heating with Low Power Consumption

The heating plate transfers warmth upwards into the base of the drinker. An insulated underside helps reduce downward heat loss, directing more of the generated warmth towards the drinking water.

With a power consumption of 12 to 30 watts, depending on the selected size, the drinker heater is designed to support drinking water availability throughout the colder months.

Actual frost protection depends on factors such as ambient temperature, water level, drinker capacity, drinker material and exposure to wind.

Easy to Use in the Poultry House

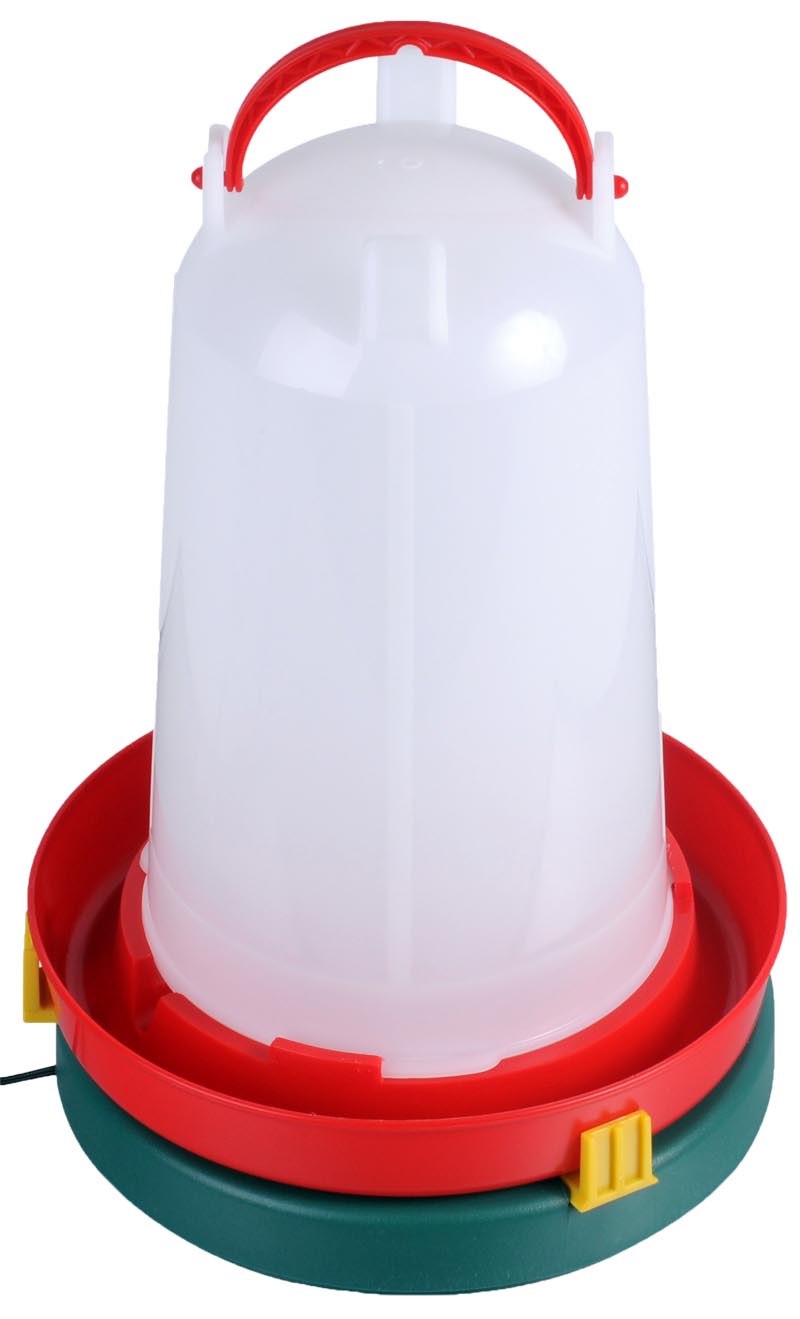

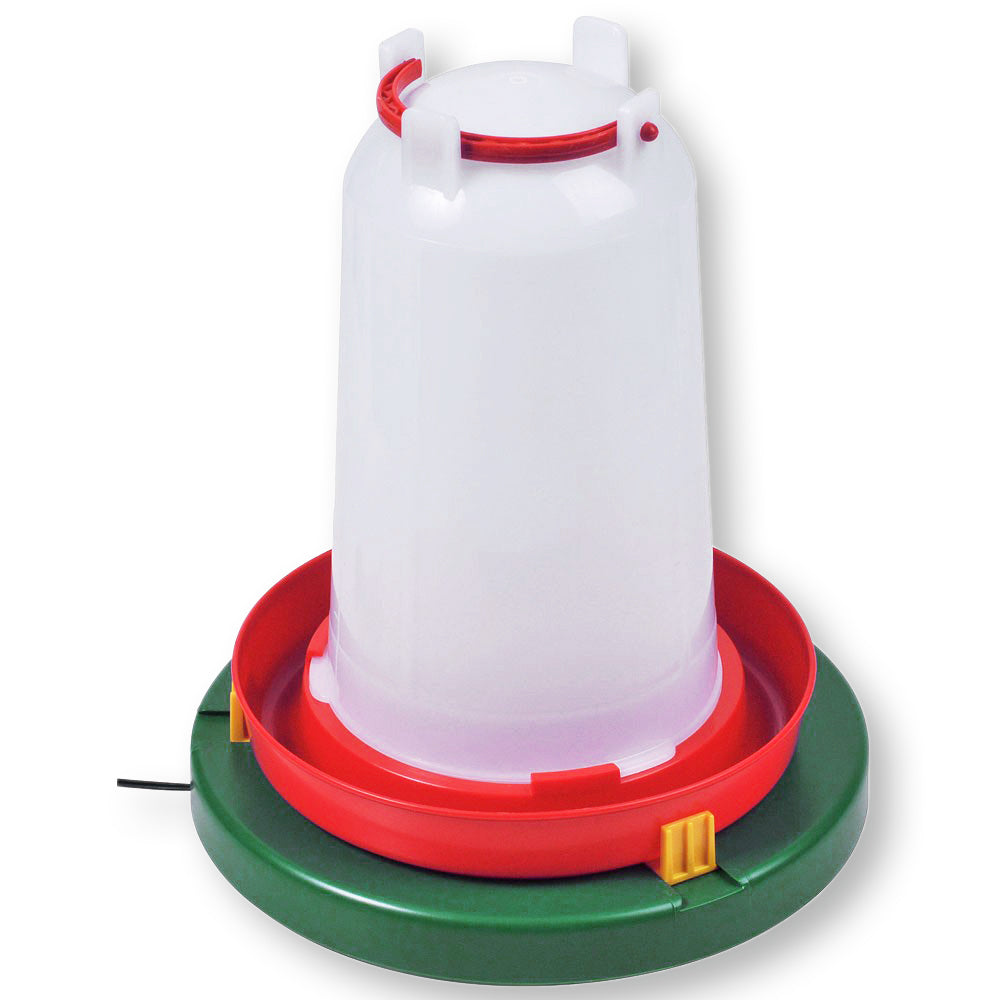

Place the drinker heater on a level, dry and stable surface. Position a compatible drinker on top and secure it with the adjustable brackets.

After connecting the device to its specified power supply, the heating function begins. No complicated installation or modification of the drinker is required.

This drinker heater does not have an adjustable thermostat. Heat is supplied according to the selected model and operating conditions.

Product Features

• Electric poultry drinker heater to help keep drinking water free from ice

• Suitable for many freestanding poultry and quail drinkers with a compatible base

• Three versions: 20 cm / 12 W, 25 cm / 20 W and 30 cm / 30 W

• Three adjustable retaining brackets for improved stability

• Particularly useful for taller and nearly empty drinkers

• Transfers warmth into the water through the drinker's base

• Insulated underside to help reduce heat loss

• Economical power consumption according to the selected size

• Easy to position beneath an existing drinker

• No adjustable thermostat

• Ideal for seasonal use during poultry keeping in winter

Technical Specifications

• Product type: Electric drinker heater with adjustable retaining brackets

• Available diameters: 20 cm, 25 cm, 30 cm

• 20 cm version: 12 W

• 25 cm version: 20 W

• 30 cm version: 30 W

• Retaining brackets: 3, adjustable

• Outer construction material: Plastic

• Colour: Green with yellow brackets

• Heat transfer: Through the upper surface of the heating plate

• Temperature control: No adjustable thermostat

• Pack size: 1 unit in the selected size

Scope of Delivery

• 1 drinker heater in the selected diameter (20, 25 or 30 cm)

• 3 matching adjustable retaining brackets

• Electrical connection components appropriate to the selected version

Not included: Poultry drinker or drinking water.

Instructions for Use and Safety

Use the heater only with suitable drinkers that stand securely and rest as fully as possible on the heating surface. Check that the retaining brackets are correctly positioned.

Regularly inspect the drinking water for ice, sufficient quantity and cleanliness. The heater cannot guarantee complete frost protection in every weather condition.

Position the appliance in a protected location and follow the relevant electrical safety instructions. Keep plugs and power adapters dry, protected from moisture and out of reach of animals that may chew the cables. Do not immerse the heater in water.

Disconnect the power supply before cleaning or moving the device. Clean the adjustable brackets and the spaces around them regularly, as dirt may accumulate there. Follow the operating instructions for the selected version.
